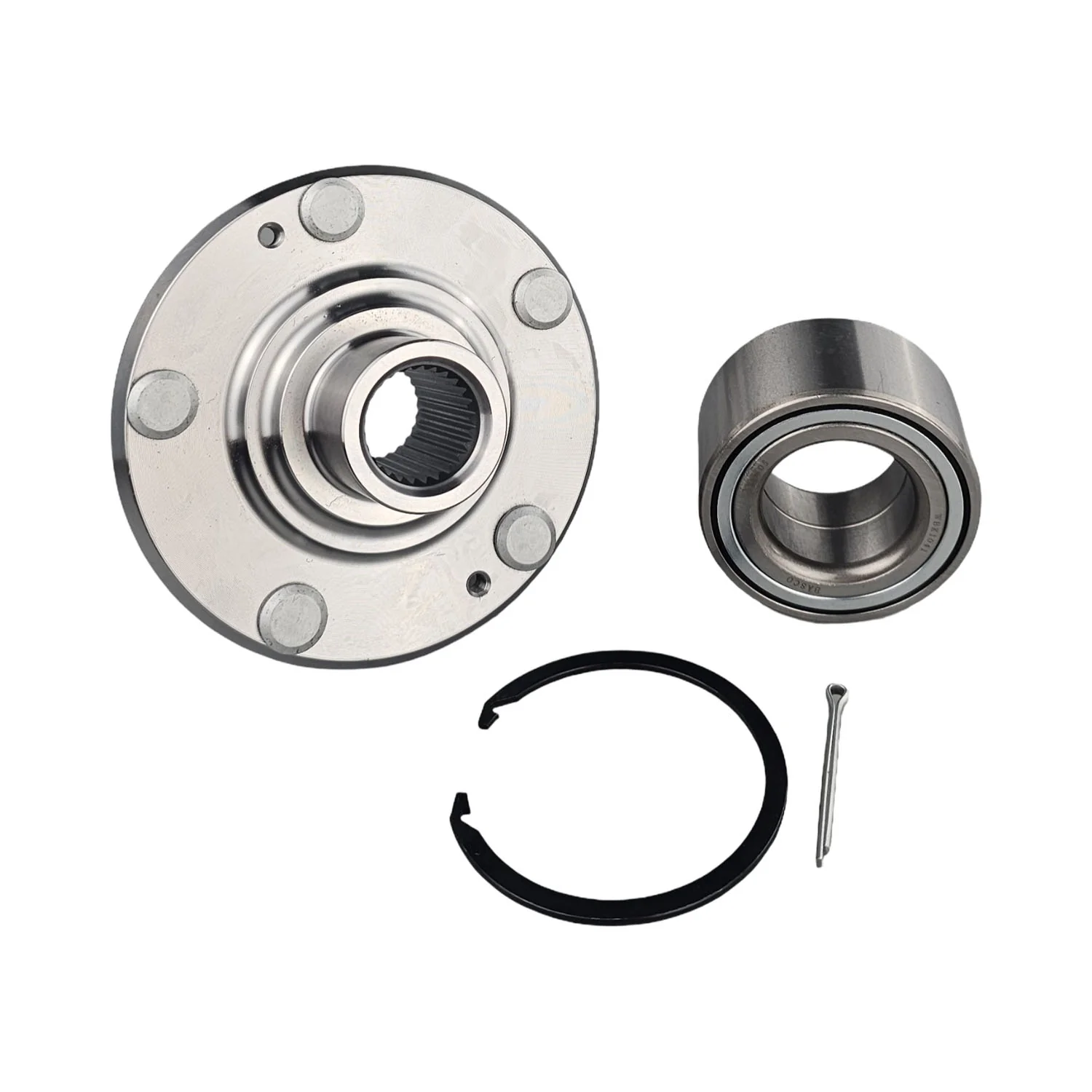

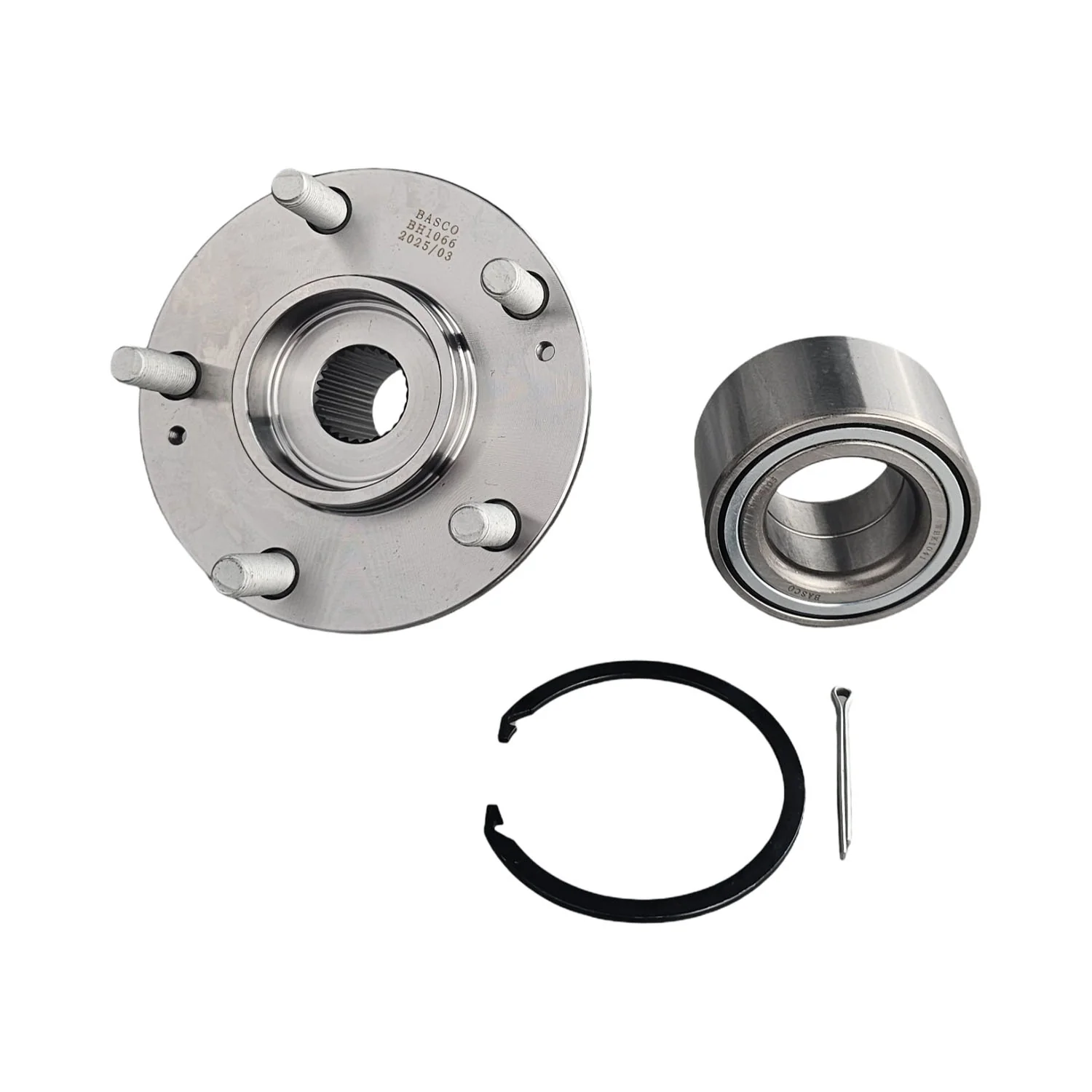

Front Wheel Bearing Hub For Hyundai i30 i30cw FD 1.6L 2.0L Double Ring Hub

One Brand New Front Wheel Hub

***Sub Assembly Needs Pressing, Double Ring Design. For Single Ring Hub Design Please See WBH1720. For Bearing Only Please See WBK1041***

Premium wheel end components engineered to OE specifications for reliability and long life.

Vehicle Fitment

• Hyundai i30 SX FD DB5T (10/2007~08/2011) 1.6L Diesel D4FB
• Hyundai i30 SLX FD DC5T (10/2007~08/2011) 1.6L Diesel D4FB
• Hyundai i30 SX, Trophy FD DB51E (10/2007~04/2012) 2.0L Petrol G4GC
• Hyundai i30 SLX, SR FD DC51E (10/2007~04/2012) 2.0L Petrol G4GC
• Hyundai i30 SX FD DB51D (04/2008~03/2012) 1.6L Petrol G4FC
• Hyundai i30 SX FD DB51S (09/2011~04/2012) 1.6L Diesel D4FB
• Hyundai i30 SLX FD DC51S (09/2011~04/2012) 1.6L Diesel D4FB
• Hyundai i30cw SX FD DB81T (03/2009~08/2011) 1.6L Diesel D4FB
• Hyundai i30cw SLX FD DC81T (03/2009~08/2011) 1.6L Diesel D4FB
• Hyundai i30cw SX FD DB81D (03/2009~01/2013) 1.6L Petrol G4FC
• Hyundai i30cw SX, Trophy FD DB81E (03/2009~01/2013) 2.0L Petrol G4GC
• Hyundai i30cw SLX FD DC81E (03/2009~01/2013) 2.0L Petrol G4GC
• Hyundai i30cw SX FD DB81S (09/2011~01/2013) 1.6L Diesel D4FB
• Hyundai i30cw SLX FD DC81S (09/2011~01/2013) 1.6L Diesel D4FB

⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.

Sizing and Specifications

• ABS: No Tone Ring on Shaft
• Spline Quantity: 27
• Wheel Stud Quantity: 5
• Hub Pilot Diameter: 42 mm
• Brake Pilot Diameter: 69 mm
• Wheel Pilot Diameter: 67 mm
• PCD: 114 mm
• Flange Diameter: 139 mm
• Notes: Bearing Size: 42 x 78 x 40 mm
• Notes: Bare Hub Height: 80.5 mm

What's Included

• 1 x Full Hub Assembly (Sub Assembly)

All components include a 12 month/20,000km warranty and support from our specialist team.
