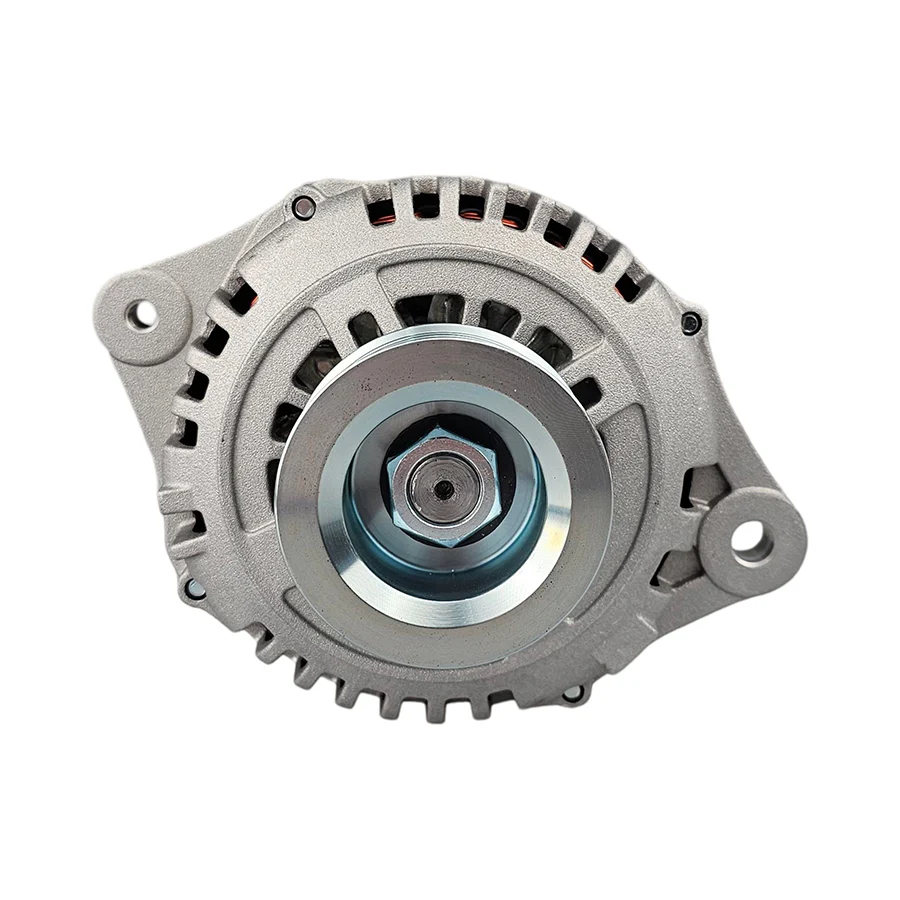

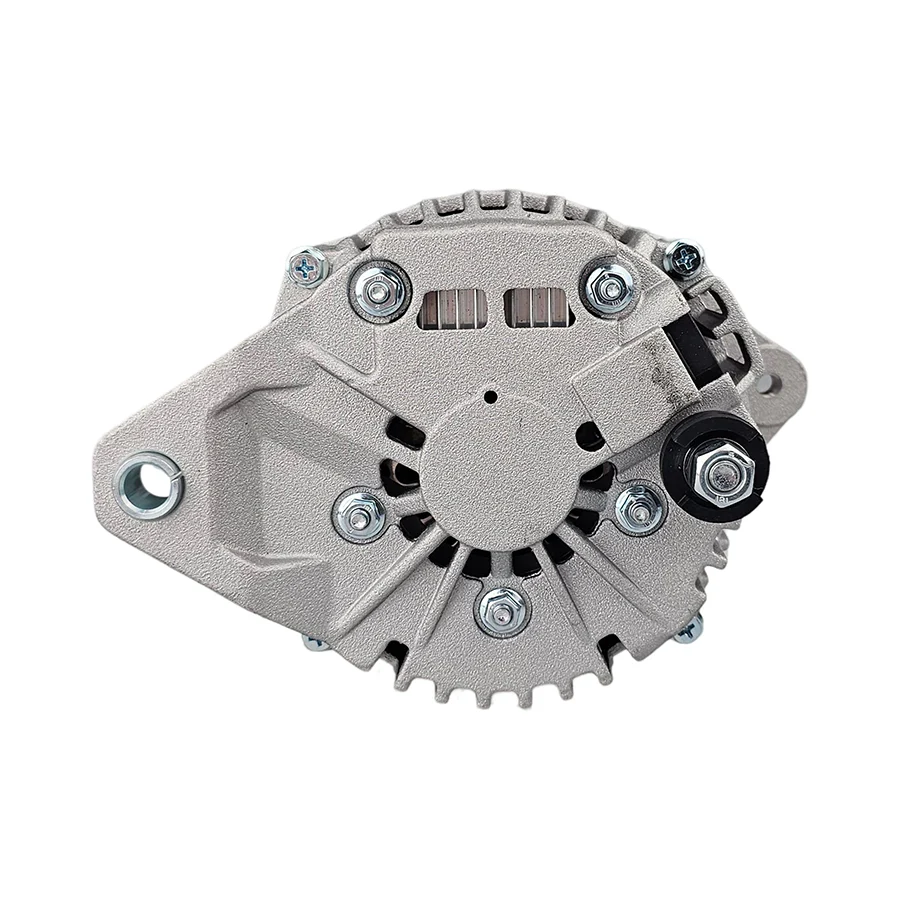

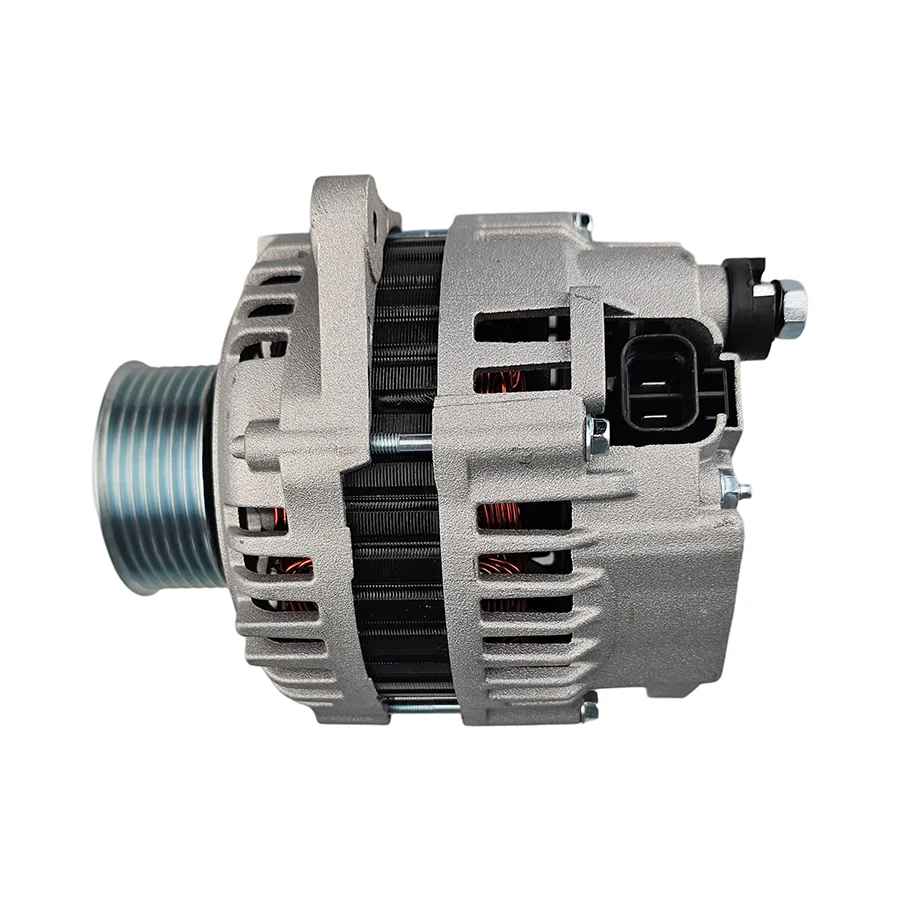

One Brand New Alternator

90 Amps, Sunken Plug

We are proud to offer top-tier alternators that set the standard in automotive excellence. Our products are crafted in accordance with stringent international quality standards (ISO/TS16949), ensuring reliability and superior performance for a wide range of vehicles.



Vehicle Fitment

• Holden Colorado RC 3.0L RWD 4WD (2008 - 2012)
  Includes Sub-models DX, LX, LT-R, LX-R
• Holden Rodeo RA 3.0L RWD 4WD (2007- 2008)
  Includes Sub-models
• Isuzu D-max TFS TFR 3.0L RWD 4WD (2012 - 2020)
  Includes Sub-models SPACE CAB, LS-M, LS-T, LS-U, SX, X-RIDER, EX
• Isuzu Mu-x UCS UCR 3.0L RWD 4WD (2013 - 2021)
  Includes Sub-models LS-M, LS-T, LS-U



Specifications and Sizing

• Voltage : 12V

• Amps : 90A
• Plug : RP19
• Pulley : 7PV
• Pulley Diameter : 69MM
• Adjustment Hole: M8 x 1.25
• Pivot Hole: 10mm
• Adjustment to Pivot Hole: 159mm
• Pivot Length: N/A
• Inside Feet to Feet: 80mm



What's Included

• 1 x Alternator

All our parts come with a 12 month/20,000km warranty. They are backed up with a professional customer service team that has been in the industry for over 100 years. We are the wheel end experts. Our customer service team will be there to support you throughout the entire process. From questions you have pre-purchase to follow up support post purchase. Make the right decision and buy with a company that has a proven track record in service and supply.
